Service Mesh with Istio in Kubernetes

Quiz

As modern applications grow in complexity, managing service-to-service communication becomes increasingly challenging. This is where a service mesh comes in. A service mesh provides traffic management, security, observability, and resilience between services without modifying the application code.

Istio is one of the most popular service mesh solutions for Kubernetes. It enhances the way services interact by enabling features such as traffic control, security policies, and deep observability.

What is Istio?

Istio is an open-source service mesh that helps manage service-to-service communication within a Kubernetes cluster. It abstracts away complex networking concerns, making it easier to deploy and scale microservices while ensuring security.

Key Features of Istio

Traffic Management:Route traffic intelligently with features like load balancing, retries, and failover.
Security:Enforce strong authentication, authorization, and encryption via mTLS (mutual TLS).
Observability:Gain insights with tracing, monitoring, and logging using built-in integrations with Prometheus, Grafana, and Jaeger.
Policy Enforcement:Define policies to control service-to-service interactions, rate limiting, and circuit breaking.

Installing Istio on Kubernetes

Before using Istio, we need to install it in our Kubernetes cluster. The latest version of Istio can be installed using the Istio CLI (istioctl).

Prerequisites:

A running Kubernetes cluster (v1.25 or later).
kubectl configured to manage the cluster.
Helm (optional, but useful for managing Istio components).

Download and Install Istio CLI

$ curl -L https://istio.io/downloadIstio | sh -
$ cd istio-*/
$ export PATH=$PWD/bin:$PATH

Output

% Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   101  100   101    0     0     71      0  0:00:01  0:00:01 --:--:--    71
100  5124  100  5124    0     0   2366      0  0:00:02  0:00:02 --:--:--  2366

Downloading istio-1.25.0 from https://github.com/istio/istio/releases/download/1.25.0/istio-1.25.0-linux-amd64.tar.gz ...

Istio 1.25.0 download complete!

The Istio release archive has been downloaded to the istio-1.25.0 directory.

Verify installation:

$ istioctl version

Output

client version: 1.25.0

Install Istio in the Kubernetes Cluster

We'll install Istio using the default configuration profile:

$ istioctl install --set profile=demo -y

Output

        |\
        | \
        |  \
        |   \
      /||    \
     / ||     \
    /  ||      \
   /   ||       \
  /    ||        \
 /     ||         \
/______||__________\
____________________
  \__       _____/
     \_____/

â Istio core installed âµï¸
â Istiod installed ð§
â Egress gateways installed
â Ingress gateways installed
â Installation complete

Enable Istio Sidecar Injection

Enable automatic sidecar injection by labeling the namespace:

$ kubectl label namespace default istio-injection=enabled

Output

namespace/default labeled

Deploying an Application with Istio

Let's deploy a sample microservices application to see Istio in action.

Deploy the Bookinfo Sample App

$ kubectl apply -f
https://raw.githubusercontent.com/istio/istio/release-1.20/samples/bookinfo/platform/kube/bookinfo.yaml

Output

service/details created
service/productpage created
service/ratings created
service/reviews created
deployment/details-v1 created
deployment/ratings-v1 created
deployment/reviews-v1 created
deployment/productpage-v1 created

Check if the services are running:

$ kubectl get pods

Output

NAME                              READY   STATUS    RESTARTS   AGE
details-v1-86545f5dfb-ktw6x       2/2     Running   0          33m
productpage-v1-7c74cbdbcc-dhrgn   2/2     Running   0          33m
ratings-v1-57544668d4-zz2mj       2/2     Running   0          33m
reviews-v1-5f58978c56-f8s2h       2/2     Running   0          33m
reviews-v2-7bd564ffc6-6kkg9       2/2     Running   0          33m
reviews-v3-7dfb7c4b64-lmjjv       2/2     Running   0          33m

Each pod has 2/2 containers, meaning the application and the Istio sidecar proxy (Envoy) are running.

Expose the Application Using Ingress Gateway

$ kubectl apply -f
https://raw.githubusercontent.com/istio/istio/release-1.20/samples/bookinfo/networking/bookinfo-gateway.yaml

Output

gateway.networking.istio.io/bookinfo-gateway created
virtualservice.networking.istio.io/bookinfo created

Verify the gateway is created:

$ kubectl get gateway

Output

NAME               AGE
bookinfo-gateway   43s

Retrieve the external IP:

$ kubectl get svc istio-ingressgateway -n istio-system

Output

NAME                   TYPE           CLUSTER-IP      EXTERNAL-IP      PORT(S)                                      AGE
istio-ingressgateway   LoadBalancer   10.100.150.34   34.125.123.45    80:31565/TCP,443:31984/TCP,15021:31276/TCP   5m

Access the application using:

http://<EXTERNAL-IP>/productpage

Alternatively, forward the productpage pod:

$ kubectl port-forward -n default deploy/productpage-v1 8080:9080

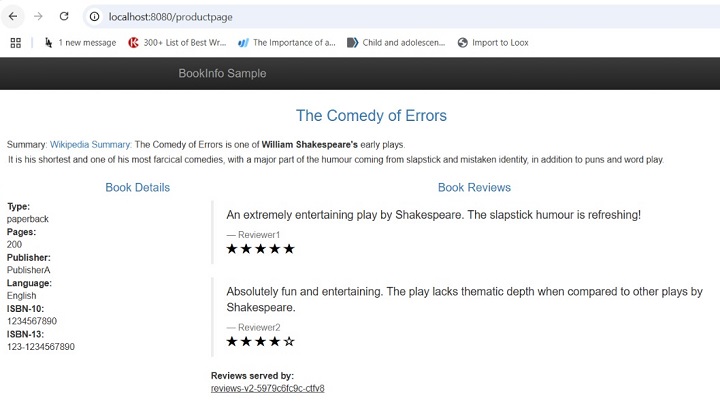

Now, open the browser and go to http://localhost:8080/productpage.

Traffic Management with Istio

One of Istioâs most powerful features is controlling traffic between services.

Canary Deployment

We can gradually shift traffic to a new version of a microservice.

Apply the Destination Rule

$ kubectl apply -f
https://raw.githubusercontent.com/istio/istio/release-1.20/samples/bookinfo/networking/destination-rule-all.yaml

Output

destinationrule.networking.istio.io/productpage created
destinationrule.networking.istio.io/reviews created
destinationrule.networking.istio.io/ratings created
destinationrule.networking.istio.io/details created

Now, weâll modify traffic routing rules.

Create a new file named virtual-service.yaml and add the following contents:

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
    - reviews
  http:
    - route:
        - destination:
            host: reviews
            subset: v1
          weight: 75
        - destination:
            host: reviews
            subset: v2
          weight: 25

Apply the changes:

$ kubectl apply -f virtual-service.yaml

Output

virtualservice.networking.istio.io/reviews created

Now, 75% of the traffic goes to reviews:v1, and 25% goes to reviews:v2.

Securing Communication with Istio

Enable Mutual TLS (mTLS)

Istio can enforce mutual TLS (mTLS) to encrypt all service-to-service communication.

Create a new file named mtls-policy.yaml and add the following contents:

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: istio-system
spec:
  mtls:
    mode: STRICT

Apply the policy:

$ kubectl apply -f mtls-policy.yaml

Output

peerauthentication.security.istio.io/default created

Now, all internal traffic is encrypted automatically.

Implement Authorization Policies

To limit access between services, we can deny all traffic by default.

Create a file named auth-policy.yaml and add the following contents:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: deny-all
  namespace: default
spec:
  action: DENY
  rules:
    - {}

Apply the policy:

$ kubectl apply -f auth-policy.yaml

Output

authorizationpolicy.security.istio.io/deny-all created

Now, we'll allow traffic only from specific services.

Create a file named auth-allow.yaml and add the following contents:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: allow-productpage
  namespace: default
spec:
  action: ALLOW
  rules:
    - from:
        - source:
            principals: ["cluster.local/ns/default/sa/productpage"]

Apply the new rule:

$ kubectl apply -f auth-allow.yaml

Output

authorizationpolicy.security.istio.io/allow-productpage created

This rule restricts unauthorized access and follows the zero-trust security model, ensuring that only approved services can talk to each other within the Istio mesh.

Istio Fault Injection (Resilience Testing)

Fault injection helps simulate failures to test application resilience. We can introduce artificial delays or errors to observe how the system handles them.

Creating the Fault Injection Rule

Create a file named fault-injection.yaml and add the following lines:

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
    - reviews
  http:
    - fault:
        delay:
          fixedDelay: 5s
          percent: 50
      route:
        - destination:
            host: reviews
            subset: v1

Output

virtualservice.networking.istio.io/reviews created

With this rule, 50% of requests to the reviews service will experience a 5-second delay. This helps test how your application handles latency and resilience under failure conditions.

Istio Traffic Mirroring (Shadow Traffic)

Traffic mirroring allows sending a copy of live traffic to a new service version without impacting production users.

Creating the Traffic Mirroring Rule

Create a file named traffic-mirroring.yaml and add the following lines:

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
    - reviews
  http:
    - route:
        - destination:
            host: reviews
            subset: v1
      mirror:
        destination:
          host: reviews
          subset: v2

Apply the rule:

$ kubectl apply -f traffic-mirroring.yaml

Output

virtualservice.networking.istio.io/reviews created

Now, all traffic that goes to reviews v1 will also be mirrored to reviews v2 without affecting the user experience. This allows testing the new version with real-world traffic before fully switching over.

Conclusion

Istio provides a powerful and flexible way to manage microservices in a Kubernetes environment. By abstracting complex networking tasks, Istio enables seamless traffic management, security enforcement, and policy control without modifying application code.

In this guide, we explored Istioâs key features, from installation to advanced traffic control, security policies, and fault injection techniques. With traffic mirroring, canary deployments, rate limiting, and mutual TLS encryption, Istio enhances the resilience, security, and efficiency of microservices at scale.
